Unicomp UNC160 NDT X-Ray Inspection Equipment for Automotive Components
Chi tiết sản phẩm
Unicomp UNC160 NDT X-ray equipment
,automotive component X-ray inspection
,NDT X-ray machine with warranty
Unicomp UNC160 X-Ray for detecting internal defects in brake pads. Mainly used in all kinds of metal castings, hardware products, plastic products, refractory materials, review materials, ceramic body and metal parts welding and other products for non-destructive.
- Widespread Applications: Large inspection size and loading weight capacity
- Safety Standard: High level protection with international standard, multiple safety set up
- Image Processing: Fast image acquisition with high quality, user-friendly design
- Highly Testing Efficiency: CNC programmable inspection mode can achieve fast speed
| Product Name: | Unicomp UNC160 X-Ray for detecting internal defects in brake pads |
|---|---|
| Dimensions: | 2024mm*2160mm*2292mm(L*W*H) |
| Machine Weight: | 3200kg |
| Pixel Matrix: | 3072*3072 |
| Pixel Size: | 139μm |
| Tube Voltage: | 160KV |
| Focus Size: | 0.5 |
| Training: | Yes, we warmly welcome you to visit our factory, we will arrange the free training for you. |
| Services: |
Help customers analyze product projects and provide detection solutions. Free sample detection test. Provide professional detection solutions. We have skilled jig design services. Provide shipping/delivery information checking service. One year guarantee, all life maintain promise. 24-hour feedback speed by email to others. |

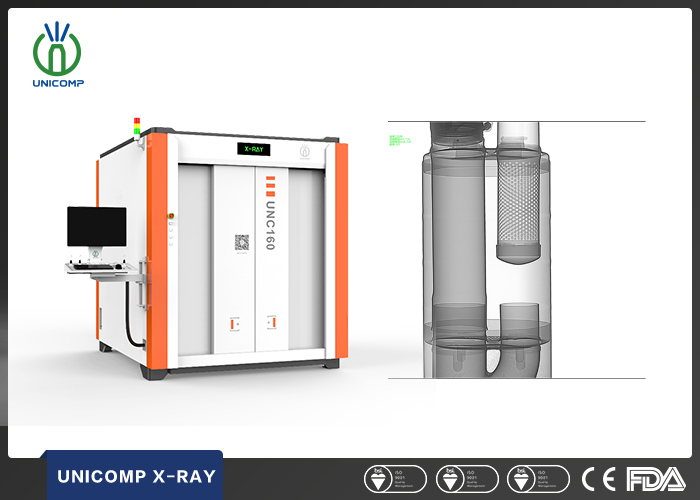

The UNC160 Advanced X-Ray NDT Inspection Machine for Casting Parts features a 139μm pixel size, <1uSv/h X-ray leakage, and 160KV tube voltage. Its dimensions are 2024x2160x2292mm.
Versatile across industries, it aids in inspecting:
- Automotive parts (engine blocks, transmissions, suspensions) for cracks, voids, and porosity
- Aerospace components (turbine blades, engine mounts, landing gears) for hidden defects
- Manufactured parts (castings, forgings, weldments) for inclusions, shrinkage, and cracks
- Research on material, composition, and properties
The UNC160, with its compact design and advanced X-ray technology, is a vital tool for NDT.
Our Industrial X Ray Machine product comes with comprehensive technical support and services to ensure optimal performance and reliability. Our trained technicians are available to provide assistance with installation, setup, and calibration of the machine. In addition, we offer ongoing maintenance and repair services to keep the machine running smoothly and to minimize downtime. Our team also provides training and consultation services to help users get the most out of the machine and to ensure safe and effective operation. Contact us for more information about our technical support and services.

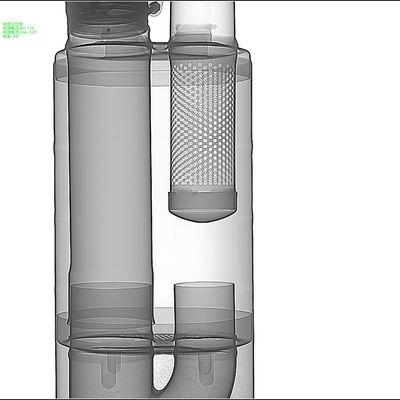

Inspection pictures are highly visible and can visually show the existence of bubbles, cracks, impurities, loose and other internal defects in the casting products.
-
